Basic Principles

1. Validate only relevant use cases.

2. If a tool error is negligible compared to human error, validation is not required.

3. Use comparisons between diverse tools as part of the argumentation.

4. Reuse community tests wherever reasonable.

5. There is no such thing as “proven in use” for newer tool versions.

Classification & Qualification Model

The following flowchart provides an overview of all available Sphinx-Needs types and their relationships.

This classification documentation focuses on the blue elements:

• Use cases

• Features

• Errors

• Restrictions

• Tools

The remaining elements are part of the Qualification Kit.

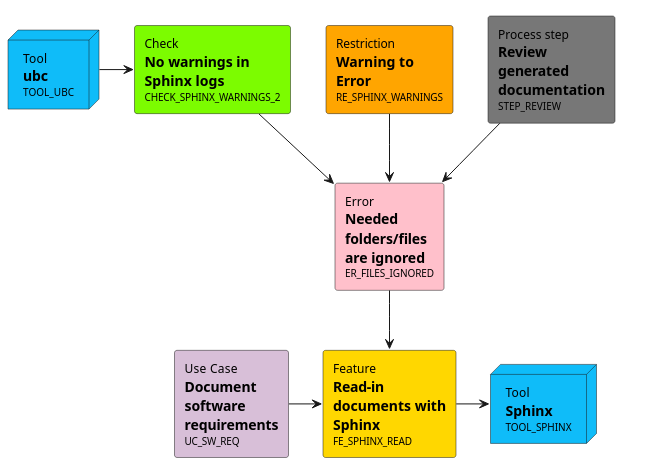

An example of this data model with real elements is shown below:

Each Sphinx-Needs object has several attributes, as illustrated in the following class diagram.

Calculated attributes are marked with a red square, while manual ones are marked with a green circle.

Extend Documentation

For this documentation, the workflow described in Usage is the preferred approach.

After making changes and testing them locally with a Sphinx build, create a Pull Request (PR) in the repository.

The PR will be automatically checked, and the documentation will be built in a test run. Afterward, a manual review will be conducted.

Once the review is approved and all CI tests pass, the PR will be merged, and the updated documentation will be deployed.

TI, TD, and TCL Values

The Tool Impact (TI) value is assigned at the use case level and indicates whether the use case has a safety-relevant impact:

• TI = 2: Indicates a safety-relevant impact.

• TI = 1: Indicates no safety relevance.

Hint

The TI level is very project-specific. For instance in one project requirements are used to describe an Airbag system for a car, in another project there are used for minor parts of the multimedia system.

This documentation always have the “worst case” in mind, which means that the target documentation is the single source of truth for a high safety critical project.

The Tool Error Detection (TD) value must be defined for each error and represents the ability to detect the error:

• TD = 1: The error is detected, and execution stops without producing a final result.

• TD = 3: The error is not detected.

• TD = 2: This value is not used in this document.

The final Tool Confidence Level (TCL) is calculated as follows:

• If TI = 1, then TCL = 1, and no further actions are required for tool qualification.

• If TI = 2, the highest TD value among all linked, safety-relevant features and their errors determines the TCL.

• A tbd (to be done) can be set, if the final TCL can onyl be set after missing features and co. are added.

A use case with a TCL of 2 or 3 requires special handling during the tool qualification process.

Type	Allowed Values	Scope	Manually Set?
TI	1, 2	Use Case	Yes
TD	1, 3	Error, Feature	Yes
TCL	1, 2, 3, tbd	Use Case	No

Safety Impact Value

The Tool Impact (TI) value indicates whether a tool, as a whole, has a safety-relevant impact. However, it does not differentiate between individual features. Instead, the safety impact is determined by how the tool is used within a specific project.

To address this limitation, we introduced the Safety Impact (SI) value. This value specifies whether a feature has a safety impact for most standard use cases or if it can always be used safely without further qualification.

For example, the Sphinx feature Bold (Strong) Text (FE_SPHINX_INLINE_STRONG) allows text to be displayed in bold. Whether text is bold or not does not have a safety impact, so this feature can always be used safely without requiring further qualification.

In contrast, features like HTML Output (FE_SPHINX_OUTPUT_HTML) can have a significant impact if their output does not include all necessary data.

Ultimately, the use case determines whether it has a safety impact. This decision can vary by project, as only the project team knows how critical the output artifacts are to the overall safety concept.

Example

.. feature:: Read Traceability objects in Sphinx-Needs
   :id: FE_SN_READ
   :tools: TOOL_SN
   :si: yes
